Smart Mini Kitchen Water Heater KF

Description

JNOD instant electric water heater delivers endless hot water, while at the same time saving space, time, money, and allowing you to reduce your overall energy and water use. JNOD’s patent tankless water heater technology can be can be used worldwide in a variety of applications from homes of any size, business environments such as offices or restaurants, or even public places.

Highlights

  • Endless single point / multi points hot water supply
  • Optional function: Intelligent smart Wi-Fi app control the temperature setting, turn ON/OFF, cooperate with TUYA.
  • Easy 360° installation: wall mounted and can be installed in any angle
  • LED Digital temperature display and touch screen control with stepless knob.
  • Patent die cast aluminumn heating element
  • Compact and portable size design
  • 98% high heating efficiency, 3s fast heating
  • Automatic thermostatic, constant temperature shower water supply no more than ± 1℃

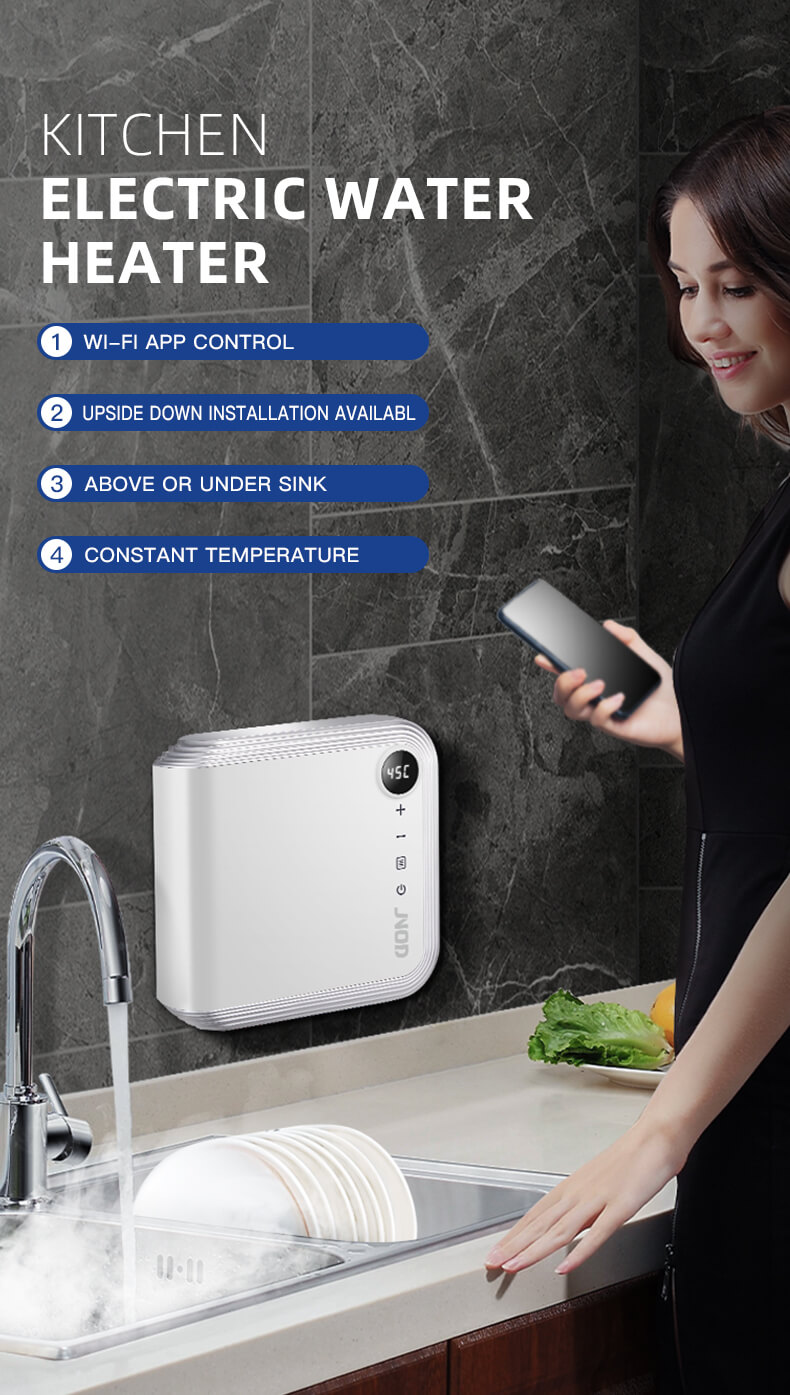

  • Application: bathroom,  Kitchen,  Above/ Under Sink, Shower, hotel, etc
a logo of CE 01
a logo of CB 01

Specifications

ModelKF
Rated Voltage220-240V 50/60Hz
Rated Power3.5kW /4.5kW /5.5kW/ 7kW
ColorsWhite/ Silver/ Green/ Customized
ControlSensor Touch Screen/ Smart Wifi App (Optional)
Temperature Range30-55℃
Rated Pressure0.02-0.6MPa
Housing MaterialHigh Strength ABS
Pipe SectionG1/2"
Product Size225*205*80mm
qualities of the JNOD compact electric water heater 01
Tooltip Content
Tooltip Content
Tooltip Content

【Intelligent Control】

The tankless water heater comes with digital display & touch control panel so temp setting is easy job. You can also choose the intelligent type which is controlled by Wi-Fi App through your phone.

【Fast & Endless Hot Water Supply】

Consistent hot water when you need it that never runs out; Continuously monitored water temperature and controlled flow rates ensure efficiency and consistent performance within 1 degree of selected temperature.

【Energy Save】

JNOD Insatant electric water heaters are 98% thermal energy efficient, you can get hot water within 5 seconds; Only heats water when called unlike a tank heater that maintains water temperature even when not being used.

【Space Save & Flexible Installation】

90% smaller than traditional tank heaters; may be installed on wall, at point of use or multi points use.  It is ideal for above or under sink installation. You can also installed it concealed in your cabinet.

【Multiple Safe Protection】

Comes with overheat protection, IP25 waterproof, over pressure protection , anti-scalding protection and leakage protection. With fault auto-detection technique, the cause will be displayed automatically with failure.

【Easy Operation & Installation】

Stepless switch knob design and sensitive touch screnn opereation for direct temperature setting. LED Digital display for working condition and teperature show. Easy wall mounted design.

【Patent Heating Technology】

Use with JNOD patent cast aluminum electric heating element, water and electricity isolation, safe to use. With multi-layer structure heating chamber from a long circulating water channel, no limescale and longer lifespan.

【Automatic Thermostatic】

Constant temperature shower water supply no more than ± 1℃

functions of the JNOD compact electric water heater 01

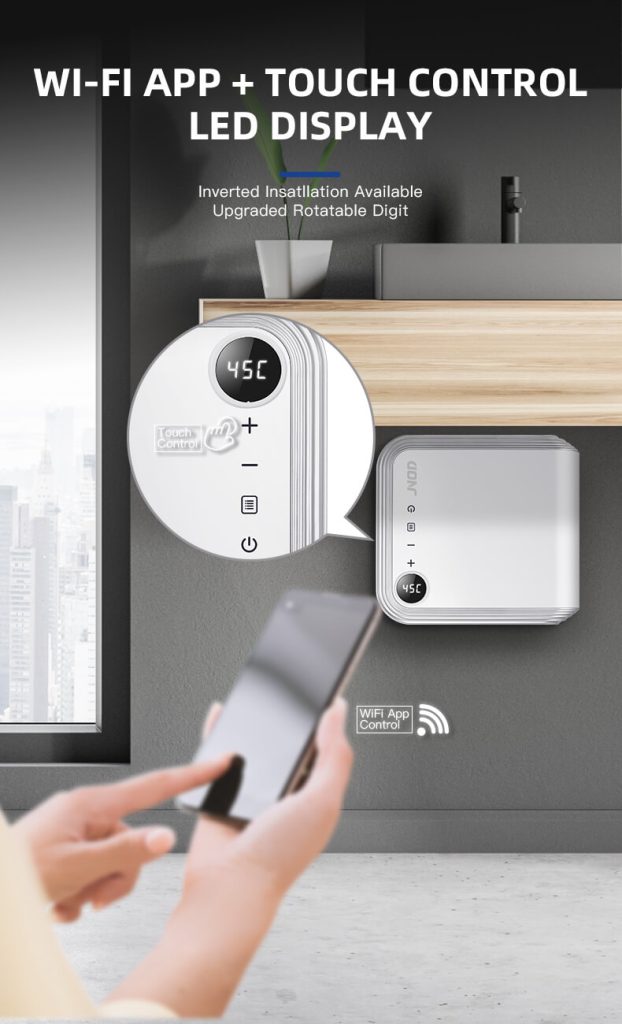

wi-fi control of the JNOD compact electric water heater 01
features of the JNOD compact electric water heater 01

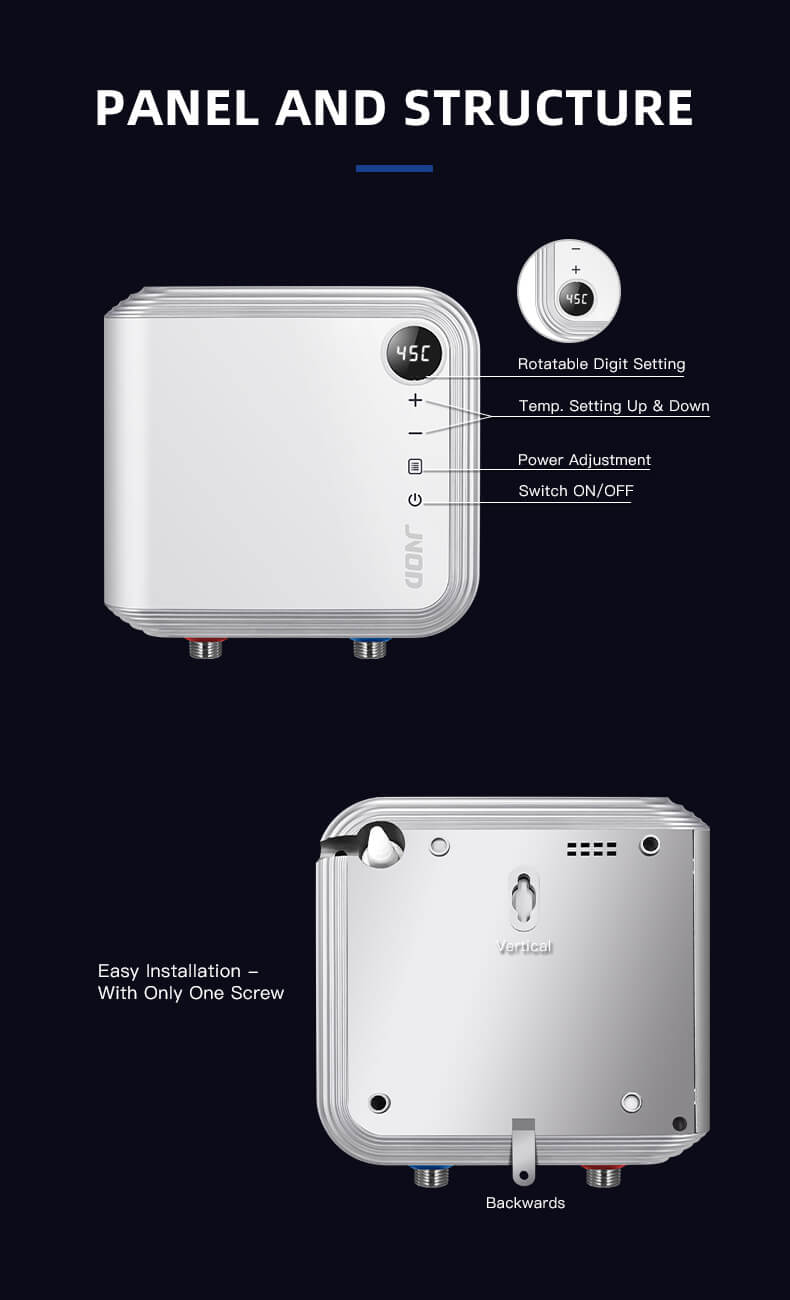

parts of the JNOD compact electric water heater 01

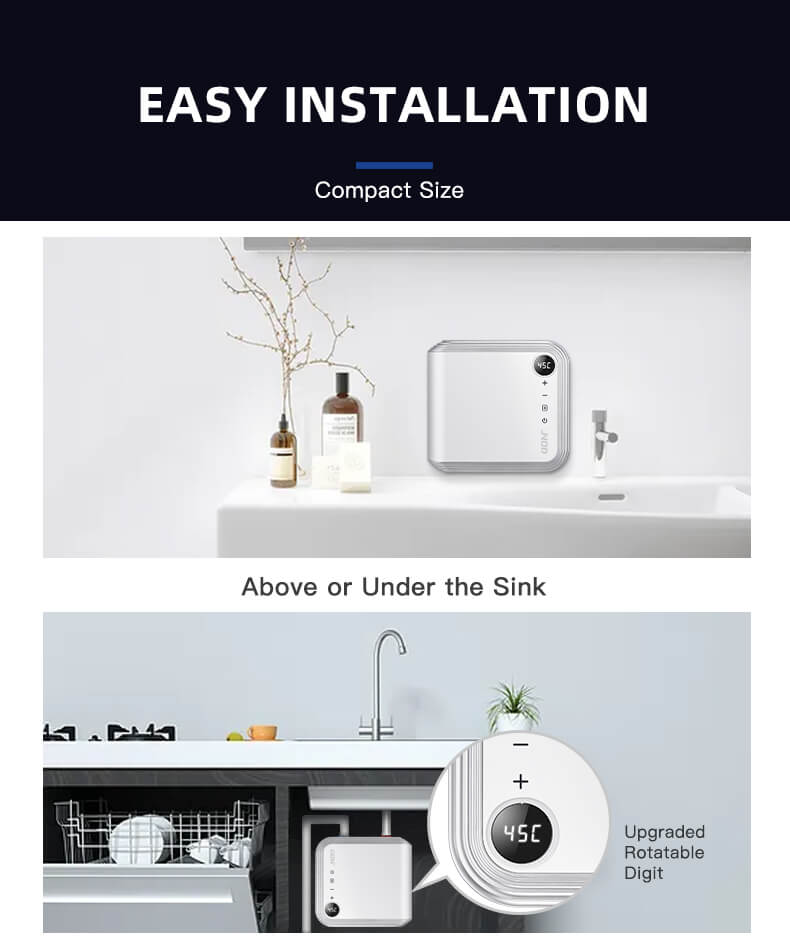

installation options of the JNOD compact electric water heater 01

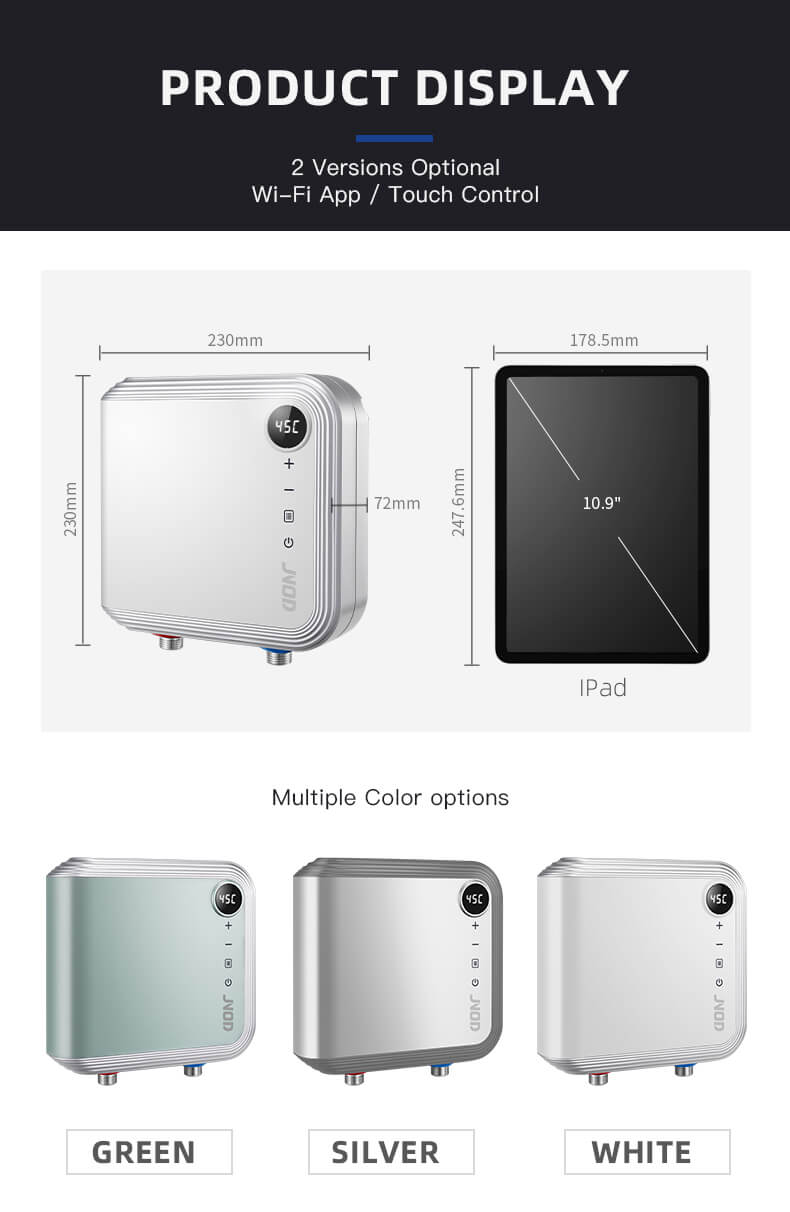

color options for the JNOD compact electric water heater 01

Wide Application

* Single Family Residential Whole House

* Multi-Family Residential Whole House

* Point-of-Use Water Heating

* Solar or Geothermal Water Heater Booster

* Business and Commercial

Research & Development

In Addition To Quality Water Heaters, We Provide...

Effective Solution

Tell us your needs and our professional in-house engineers will give you professional water heating solutions including specific parameters which is more than satisfaction.

Customization

One-stop shop for your water heating projects; Components,  heating performance, intelligent function etc. all can be tailored to your specific requirements. Tell us your ideas, we make it real.

Fast Delivery

Time is money. We are deeply aware of what time means to your business. Sample order can be shipped within 3 days and standard orders are shipped within 1 months from getting your orders. Cooperate with SNOOWEL, coordinate with your schedule.

Warranty

Each and every light is backed up with long warranty period of 1-3 years. Any concern including LED lights and components are covered in it. Our after-sales support team is always ready to help you.
